NANOCI

date
2012 — 2016
groupe de compétences
Métrologie et vision industrielle

Multidisciplinary project to improve cochlear implants: the addition of a pressure and temperature sensor at the tip of the electrode array was proposed to facilitate controlled insertion.

Context and challenges

In the context of a multidisciplinary project to improve cochlear implants (CIs), neuroprostheses to restore hearing in deaf patients, the addition of a pressure and temperature sensor at the tip of the electrode array was proposed to facilitate controlled insertion.

Objectives

A new miniature Fabry-Pérot interferometer (FPI) based on a fiber tip resonator has been designed, fabricated, and tested. Finally measurements on a Human temporal bone specimen have been performed and have shown the sensor potential for monitoring the CIs pressure insertion.

Partners and funding

University of Bern (Switzerland)
Eberhard Karls Universität Tübingen (Germany)
Uppsala University (Sweden)
University of Tampere (Finland)
Haute Ecole Arc Ingénierie – Metrology and Industrial Vision Group (Switzerland)
Bar-Ilan University (Israel)
EMC microcollections GmbH (Germany)
MED-EL Elektromedizinische Geräte GmbH (Austria)
SCIPROM Sàrl (Switzerland)

Funded by the EU commission under the project NANOCI (contract FP7-NMP.2011–281056).

Results

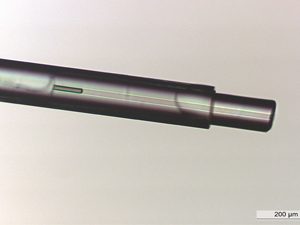

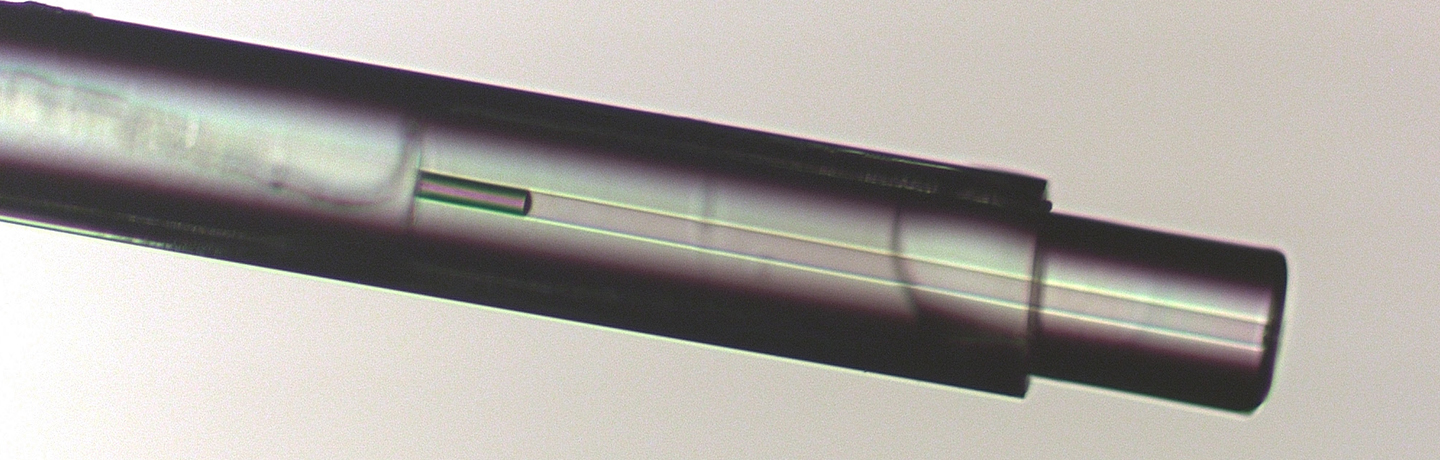

Sensor

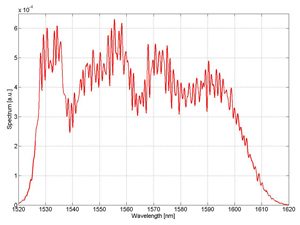

Feedback optical spectrum

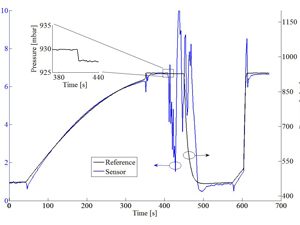

Athmospheric pressure measurements

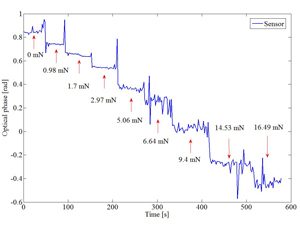

Force measurements

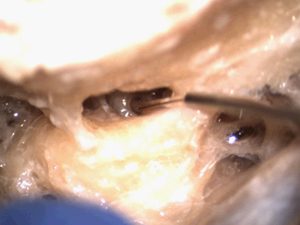

Insertion of optical sensor into Human temporal bone specimen.

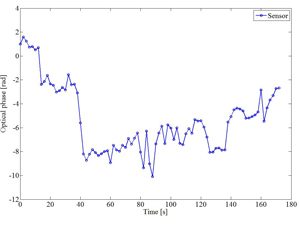

Pressure measurements from the Human temporal bone insertion experiments

Valorisation

Project website
Scientific paper: M. Llera, T. Aellen, J. Hervas, Y. Salvadé, P. Senn, S. Le Floch, and H.Keppner: « Liquid-air based Fabry-Pérot cavity on fiber tip sensor »
Patent : M. Llera et T. Aellen, Patent EP16196731.0, 2016
